Butterfly butterfly valve with cast iron disc ZETKAMA DN50-DN300

Name: Теплотерм
Telephone: (044) 33-999-40

Be the first to review this product

Short information

Nominal diameter: 50-300 Mounting length: 43-78 mm Type of connection: wafer type Maximum operating pressure: 16 bar Maximum operating temperature: + 110°С

SKU: 497-67sbor

Add to Wishlist

Наименование	Краткая информация	Артикул	Price	Add to Cart
Butterfly butterfly valve with cast iron disc ZETKAMA DN50	Nominal diameter: 50 mm Mounting length: 43 mm	497-67-50	₴1,809.05	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Butterfly butterfly valve with cast iron disc ZETKAMA DN65	Nominal diameter: 65 mm Mounting length: 46 mm	497-67-65	₴2,197.05	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Butterfly butterfly valve with cast iron disc ZETKAMA DN80	Nominal diameter: 80 mm Mounting length: 46 mm	497-67-80	₴2,410.45	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Butterfly butterfly valve with cast iron disc ZETKAMA DN100	Nominal diameter: 100 mm Mounting length: 52 mm	497-67-100	₴2,924.55	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Butterfly butterfly valve with cast iron disc ZETKAMA DN125	Nominal diameter: 125 mm Mounting length: 56 mm	497-67-125	₴4,129.78	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Butterfly butterfly valve with cast iron disc ZETKAMA DN150	Nominal diameter: 150 mm Mounting length: 56 mm	497-67-150	₴4,474.13	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Butterfly butterfly valve with cast iron disc ZETKAMA DN200	Nominal diameter: 200 mm Mounting length: 60 mm	497-67-200	₴7,056.75	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Butterfly butterfly valve with cast iron disc ZETKAMA DN250	Nominal diameter: 250 mm Mounting length: 68 mm	497-67-250	₴11,203.50	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Butterfly butterfly valve with cast iron disc ZETKAMA DN300	Nominal diameter: 300 mm Mounting length: 78 mm	497-67-300	₴19,530.95	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x

Details

Details

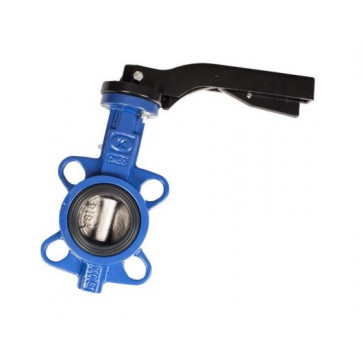

Butterfly butterfly valve with cast iron disc ZETKAMA DN50-DN300

Rotary dampers are used as a locking device for cutting off the flow of the working medium.

Characteristic:

class A according to EN 12266-1
overall length according to EN 558
flanges PN10/PN16 according to EN 1092-2
painted with epoxy paint RAL 5002 150 microns
EPDM seal
environmentally friendly

Materials:

body - malleable cast iron EN-GJS-400-15
disc - malleable iron EN-GJS-400-15
saddle - EPDM rubber
stem - stainless steel AISI 416
