Spring loaded safety valve ARI-SAFE 25.902 DN20*32-DN150*250

Spring loaded safety valve ARI-SAFE 25.902 DN2032-DN150250

Short information

Nominal diameter: 20*32-150*250 Connection type: flanged Maximum operating temperature: + 350°C Setting: 0.2-32 bar Weight: 8.5-165 kg

SKU: 25.902sbor

Add to Wishlist

Наименование	Краткая информация	Артикул	Price	Add to Cart
Spring loaded safety valve ARI-SAFE 25.902 DN20*32	Nominal diameter: 20*32 Setting: 0.2-32 bar Weight: 8.5 kg	25.902-2032	₴24,929.00	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Safety valve full lift spring ARI-SAFE 25.902 DN25*40	Nominal diameter: 25*40 Setting: 0.2-32 bar Weight: 10 kg	25.902-2540	₴25,040.55	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Spring loaded safety valve ARI-SAFE 25.902 DN32*50	Nominal diameter: 32*50 Setting: 0.2-32 bar Weight: 14 kg	25.902-3250	₴30,167.00	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Spring loaded safety valve ARI-SAFE 25.902 DN40*65	Nominal diameter: 40*65 Setting: 0.2-32 bar Weight: 20 kg	25.902-4065	₴38,572.05	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Spring loaded safety valve ARI-SAFE 25.902 DN50*80	Nominal diameter: 50*80 Setting: 0.2-32 bar Weight: 28 kg	25.902-5080	₴48,136.25	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Spring loaded safety valve ARI-SAFE 25.902 DN65*100	Nominal diameter: 65*100 Setting: 0.2-32 bar Weight: 40 kg	25.902-65100	₴68,705.10	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Spring loaded safety valve ARI-SAFE 25.902 DN80*125	Nominal diameter: 80*125 Setting: 0.2-32 bar Weight: 53 kg	25.902-80125	₴91,665.00	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Spring loaded safety valve ARI-SAFE 25.902 DN100*150	Nominal diameter: 100*150 Setting: 0.2-32 bar Weight: 80 kg	25.902-100150	₴135,897.00	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Spring loaded safety valve ARI-SAFE 25.902 DN125*200	Nominal diameter: 125*200 Setting: 0.2-32 bar Weight: 125 kg	25.902-125200	₴176,443.00	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Spring loaded safety valve ARI-SAFE 25.902 DN150*250	Nominal diameter: 150*250 Setting: 0.2-32 bar Weight: 165 kg	25.902-150250	₴270,533.00	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write [email protected] Working hours: Mon-Fri from 9 a.m. to 5 p.m. x

Details

Details

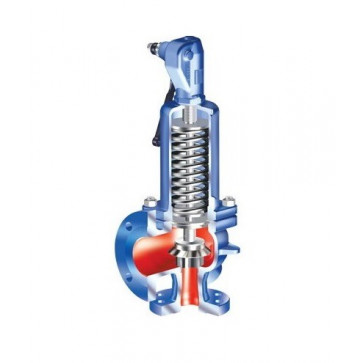

Spring loaded safety valve ARI-SAFE 25.902 DN2032 - DN150250

Safety valves ARI-SAFE series 902 provide full opening of the through hole when the pressure exceeds 5%. The minimum set pressure of operation is 0.2 bar, they have an increased capacity compared to proportional ones.

Features of ARI-SAFE safety valves:

Full lift and proportional;
Abrasion resistant seat and disc;
Valves can be made with stainless steel or EPDM bellows, which eliminates the influence of back pressure, as well as contamination of the working environment;
Versions with elastic seal available;
Precision execution of the disk and guides;
Built-in trigger sensor;
Possibility of completing with a metal rupture disc when used in super-aggressive environments.

Main technical data:

Nominal diameters: DN 20/32 – 150/250.
Maximum operating temperature: +350 ˚С.
Connection: flanged

Materials:

Housing - cast iron EN-JL 1040, EN-JS1049, steel 1.0619 + N;
Saddle - stainless steel 1.4571;
Disc - stainless steel 1.4122.05;
Spring - stainless steel 50 CrV4, 54 SiCr6;
Spindle - stainless steel 1.4021.05;
Spindle guide - stainless steel 1.4021+QT.
