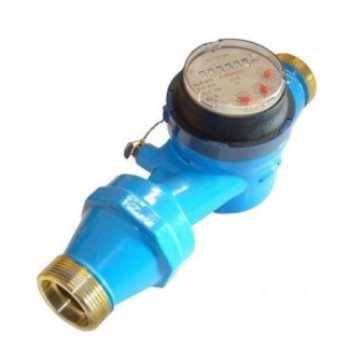

Cold water meter Powogaz JS MASTER+ DN25-DN40

Single-jet dry cold water meter Powogaz JS MASTER+ DN25-DN40 (nar-nar)

Water meters PoWoGaz JS (for cold water) and PoWoGaz JS130 (for hot water) are designed to measure the volume of drinking water or industrial (technical) water.
Mounting position: for cold water meters horizontal (metrological class B (R100)) or vertical (metrological class A (R50)), for hot water meters horizontal (metrological class A (R80)).

Characteristics:

• Nominal diameters: DN 25... 40
• Nominal water flow range: 6.3 – 16.0 m³/h
• Metrological class: class B (R100 or R50), class A (R80) according to Directive 2004/22/EC of the European Parliament and of the Council of March 31, 2004 "MID" (Measuring Instruments Directive)
• Nominal pressure: 16 bar
• Connection: threaded
• Mounting position: horizontal, vertical

The main advantages of the counter:

• Small head loss;
• The case of counters is made of brass;
• Counters with a pulse output are made with an antimagnetic screen;
• The counting mechanism is separated from the measuring chamber;
• High reliability and maintainability.

Meter Models:

• JS - cold water meters.
• JS 130 is a hot water meter with a maximum temperature of 130 °C.
• JS-NK - cold water meters with pulse output.
• JS130-NK is a hot water meter with a pulse output with a maximum temperature of 130 °C.
