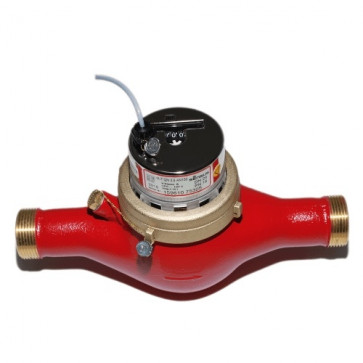

Hot water meter impulse Sensus AN130 DN40

Multi-jet hot water meter with pulse transmitter Sensus AN130 DN40

Multi-jet hot water meters AN 130 with a built-in pulse transmitter are used to measure the volume of hot water with a maximum temperature of up to 130 ° C and an operating pressure of up to 16 bar, in most cases as an integral part of heat energy meters.

Characteristics:

• Nominal diameters: DN 15... 40
• Nominal water flow range: 1.5 – 10.0 m³/h
• Nominal pressure: 16 bar
• Connection: threaded
• Mounting position: horizontal

The main advantages of the counter:

• calibration interval 4 years;

• accuracy class 2 (DN 25 mm, DN 32 mm, DN 40 mm) and accuracy class 3 (DN 15 mm, DN 20 mm) according to the Technical Regulations;
• all meters of this type are equipped with a wired reed transmitter (10 liters / pulse);
• small pressure loss;
• protection against an external magnetic field;
• for the convenience of reading the readings, the counting mechanism can rotate around the vertical axis by 330 °;
• high overload capacity for flow and pressure;
• installation on a vertical pipeline with water supply from below or from above is possible (on request, in a special case);
• high quality brass body.
