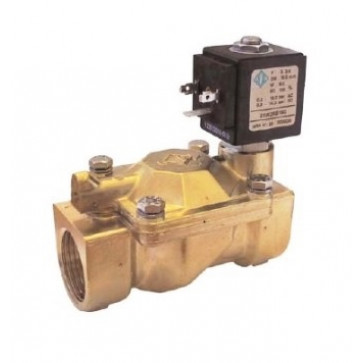

Solenoid valve of indirect action ODE DN15-DN50 (FKM)

Short information

Valve type: two-way
Valve function: normally open
Connection: 1/2 - 2"
Kvs: 70-750 l/min
Membrane material: FKM
Power supply: 12, 24, 48, 110, 220, 230 V (specify when ordering)
Working temperature: - 10 + 140°С
∆P min = 0.2 bar
ΔP max = 10-16 bar

SKU: 21WA4ZOVsbor
Наименование Краткая информация Артикул Price Qty Add to Cart
Solenoid valve of indirect action ODE DN15 (FKM)

Kvs: 70 l/min
Membrane material: FKM
Operating temperature: - 10 + 140°C
ΔP min = 0.2 bar ΔP max = 16 bar

21WA4ZOV130
₴3,690.85
Possible discount
Solenoid valve of indirect action ODE DN20 (FKM)

Kvs: 140 l/min
Membrane material: FKM
Operating temperature: - 10 + 140°C
ΔP min = 0.2 bar ΔP max = 16 bar

21W3ZV190
₴4,602.65
Possible discount
Solenoid valve of indirect action ODE DN25 (FKM)

Kvs: 190 l/min
Diaphragm material: FKM
Operating temperature: - 10 + 140°C
ΔP min = 0.2 bar ΔP max = 16 bar

21W4ZV250
₴6,096.45
Possible discount
Solenoid valve of indirect action ODE DN32 (FKM)

Kvs: 400 l/min
Diaphragm material: FKM
Operating temperature: - 10 + 140°C
ΔP min = 0.2 bar ΔP max = 10 bar

21W5ZV350
₴12,255.95
Possible discount
Solenoid valve of indirect action ODE DN40 (FKM)

Kvs: 520 l/min
Diaphragm material: FKM
Operating temperature: - 10 + 140°C
ΔP min = 0.2 bar ΔP max = 10 bar

21W6ZV400
₴12,998.00
Possible discount
Solenoid valve of indirect action ODE DN50 (FKM)

Kvs: 750 l/min
Diaphragm material: FKM
Operating temperature: - 10 + 140°C
ΔP min = 0.2 bar ΔP max = 10 bar

21W7ZV500
₴17,600.65
Possible discount
Details
Details

Solenoid valve of indirect action ODE DN15-DN50 (FKM)

Solenoid valves 2/2-way normally open indirect action models 21WA4Z... and 21W3Z... - 21W7Z... are used to automatically shut off the flow of water, steam, air, oil refinery products and other liquid and gaseous media, depending on membrane used.

Specifications:

Working environment hot water, air with oils, gasoline, diesel fuel, oil products, etc.
Type of two-way
Exploitation indirect action
Function normally open
Compound thread G 1/2 - 2"
through hole 13 - 50 mm
Kv flow 70 - 750 l/min
Seal material FKM
Media temperature range -10..+ 140°C
Minimum differential pressure 0.2 bar
Max. allowable inlet pressure 16 - 25 bar
Supply voltage ~12, 24, 48, 110, 220, 230 V (50Hz); -12, 24,48V
Work resource 400,000 cycles



Series 21WA



Series 21W
