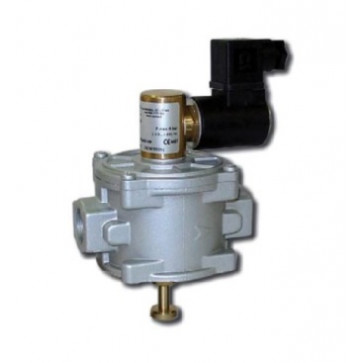

Solenoid gas valve MADAS M16/RM NA DN 32-DN 200 (manual cocking), 6 bar
Short information
Nominal diameter: 32 - 200 mm Maximum operating pressure: 6 bar Connection: coupling, flange Design: normally open Body material: aluminum
SKU:
M16RMNA-6sbor
| Наименование | Краткая информация | Артикул | Price | Qty | Add to Cart |
|---|---|---|---|---|---|
| Solenoid gas coupling valve MADAS M16/RM NA DN 32 (manual cocking) | Nominal diameter: 32 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA32-6 |
₴5,761.80
|
Possible discount
|
|
| Solenoid gas coupling valve MADAS M16/RM NA DN 40 (manual cocking) | Nominal diameter: 40 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA40-6 |
₴5,761.80
|
Possible discount
|
|
| Solenoid gas coupling valve MADAS M16/RM NA DN 50 (manual cocking) | Nominal diameter: 50 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA50-6 |
₴6,736.65
|
Possible discount
|
|
| Solenoid valve gas flange MADAS M16/RM NA DN 32 (manual cocking) | Nominal diameter: 32 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA32F-6 |
₴8,458.40
|
Possible discount
|
|
| Flanged solenoid valve MADAS M16/RM NA DN 40 (manual cocking) | Nominal diameter: 40 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA40F-6 |
₴8,458.40
|
Possible discount
|
|
| Solenoid valve gas flange MADAS M16/RM NA DN 50 (manual cocking) | Nominal diameter: 50 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA50F-6 |
₴9,636.95
|
Possible discount
|
|
| Solenoid valve gas flange MADAS M16/RM NA DN 65 (manual cocking) | Nominal diameter: 65 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA65F-6 |
₴17,338.75
|
Possible discount
|
|
| Solenoid valve gas flange MADAS M16/RM NA DN 80 (manual cocking) | Nominal diameter: 80 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA80F-6 |
₴17,557.00
|
Possible discount
|
|
| Solenoid valve gas flange MADAS M16/RM NA DN 100 (manual cocking) | Nominal diameter: 100 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA100F-6 |
₴32,131.25
|
Possible discount
|
|
| Solenoid valve gas flange MADAS M16/RM NA DN 125 (manual cocking) | Nominal diameter: 125 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA125F-6 |
₴65,620.50
|
Possible discount
|
|
| Flanged solenoid valve MADAS M16/RM NA DN 150 (manual cocking) | Nominal diameter: 150 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA150F-6 |
₴65,620.50
|
Possible discount
|
|
| Solenoid valve gas flange MADAS M16/RM NA DN 200 (manual cocking) | Nominal diameter: 200 mm Maximum operating pressure: 6 bar Execution: normally open | RMNA200F-6 |
₴182,360.00
|
Possible discount
|
Details
Details
Solenoid gas valve MADAS M16/RM NA DN 32-DN 200 (manual cocking), 6 bar
Electromagnetic on-off valves with manual cocking of the shutter are designed for remote control of gas flows (natural gas, liquefied gas, air, carbon monoxide and other dry gases) as shut-off and control organs and security organs.
The principle of operation of valves with manual cocking of the shutter is based on the automatic shutdown of the natural gas flow when voltage is applied to the coil (electromagnet) of the valve in the case of a normally open version and when voltage is removed from the coil in the case of a normally closed version.
These valves are safety valves, therefore, the valve can be re-set to the operating position after automatic operation only after the reasons for its operation have been eliminated and the valve stem has been cocked manually.
Specifications:
| Working environment | non-aggressive dry gases (natural gas, methane, liquefied gas, air, etc.) |
| Accession | coupling, flange |
| Ambient temperature | – 30 ° +60 °С |
| Food | ~ 12V, 24V, 110V, 230V AC; – 12V, 24V DC |
| Voltage tolerances | -15% ... +10% |
| Max working pressure | 6 bar |
| Closing time | < 1sec |
| Degree of protection | IP65 |
