  • Solenoid valve of indirect action ODE DN15-DN50 (NBR)

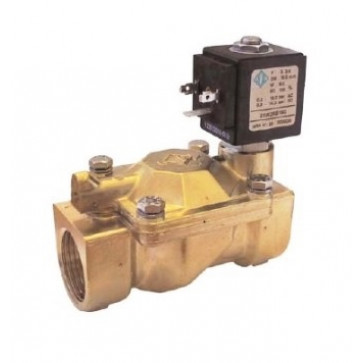

Solenoid valve of indirect action ODE DN15-DN50 (NBR) Увеличить

Solenoid valve of indirect action ODE DN15-DN50 (NBR)

Be the first to review this product

Short information

Valve type: two-way
Valve function: normally open
Connection: 1/2 - 2"
Kvs: 70-750 l/min
Membrane material: NBR
Power supply: 12, 24, 48, 110, 220, 230 V (specify when ordering)
Operating temperature: - 10 + 90°С
∆P min = 0.2 bar
ΔP max = 10-16 bar

SKU: 21WA4ZOBsbor
  • Add to Wishlist
Наименование Краткая информация Артикул Price Qty Add to Cart
Solenoid valve of indirect action ODE DN15 (NBR)

Kvs: 70 l/min
Membrane material: NBR
Operating temperature: - 10 + 90°С
ΔP min = 0.2 bar ΔP max = 16 bar

21WA4ZOB130
₴3,462.90
Possible discount
To receive a discount, call us
tel. (044) 33-999-40, 41
or write
[email protected]
Working hours: Mon-Fri from 9 a.m. to 5 p.m.
x
Solenoid valve of indirect action ODE DN20 (NBR)

Kvs: 140 l/min
Membrane material: NBR
Operating temperature: - 10 + 90°С
ΔP min = 0.2 bar ΔP max = 16 bar

21W3ZB190
₴4,340.75
Possible discount
To receive a discount, call us
tel. (044) 33-999-40, 41
or write
[email protected]
Working hours: Mon-Fri from 9 a.m. to 5 p.m.
x
Solenoid valve of indirect action ODE DN25 (NBR)

Kvs: 190 l/min
Diaphragm material: NBR
Operating temperature: - 10 + 90°C
ΔP min = 0.2 bar ΔP max = 16 bar

21W4ZB250
₴5,693.90
Possible discount
To receive a discount, call us
tel. (044) 33-999-40, 41
or write
[email protected]
Working hours: Mon-Fri from 9 a.m. to 5 p.m.
x
Solenoid valve of indirect action ODE DN32 (NBR)

Kvs: 400 l/min
Diaphragm material: NBR
Operating temperature: - 10 + 90°C
ΔP min = 0.2 bar ΔP max = 10 bar

21W5ZB350
₴10,524.50
Possible discount
To receive a discount, call us
tel. (044) 33-999-40, 41
or write
[email protected]
Working hours: Mon-Fri from 9 a.m. to 5 p.m.
x
Solenoid valve of indirect action ODE DN40 (NBR)

Kvs: 520 l/min
Diaphragm material: NBR
Operating temperature: - 10 + 90°C
ΔP min = 0.2 bar ΔP max = 10 bar

21W6ZB400
₴11,528.45
Possible discount
To receive a discount, call us
tel. (044) 33-999-40, 41
or write
[email protected]
Working hours: Mon-Fri from 9 a.m. to 5 p.m.
x
Solenoid valve of indirect action ODE DN50 (NBR)

Kvs: 750 l/min
Diaphragm material: NBR
Operating temperature: - 10 + 90°С
ΔP min = 0.2 bar ΔP max = 10 bar

21W7ZB500
₴15,030.15
Possible discount
To receive a discount, call us
tel. (044) 33-999-40, 41
or write
[email protected]
Working hours: Mon-Fri from 9 a.m. to 5 p.m.
x
  • Details
  • Reviews
Details
Details

Solenoid valve of indirect action ODE DN15-DN50 (NBR)

Solenoid valves 2/2-way normally open indirect action models 21WA4Z... and 21W3Z...- 21W7Z... are used for automatic shutoff of water, steam, air, oil refinery products and other liquid and gaseous media, depending on membrane used.

Specifications:

Working environment water, air, mineral oils, natural gas, petroleum products, etc.
Type of two-way
Exploitation indirect action
Function normally open
Compound thread G 1/2 - 2"
through hole 13 - 50 mm
Kv flow 70 - 750 l/min
Seal material NBR
Medium temperature range -10..+ 90°C
Minimum differential pressure 0.2 bar
Max. allowable inlet pressure 16 - 25 bar
Supply voltage ~12, 24, 48, 110, 220, 230 V (50Hz); -12, 24,48V
Work resource 400,000 cycles



Series 21WA



Series 21W
