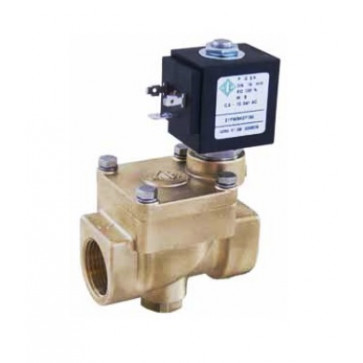

Solenoid valve of indirect action ODE DN15-DN25 (PTFE)

Short information

Valve type: two-way
Valve function: normally open
Connection: 1/2 - 1 "
Kvs: 50 - 160 l/min
Membrane material: PTFE
Power supply: 12, 24, 48, 110, 220, 230 V (Specify when ordering)
Operating temperature: - 40 + 180°C
∆P min = 0.9 bar
∆P max = 10 bar

SKU: 21YC4ZOTsbor
Наименование Краткая информация Артикул Price Qty Add to Cart
Solenoid valve of indirect action ODE DN15 (PTFE)

Kvs: 50 l/min
Membrane material: PTFE
Working temperature: - 40 + 180°С
ΔP min = 0.9 bar ΔP max = 10 bar

21YС4ZOT130
₴10,476.00
Possible discount
Solenoid valve of indirect action ODE DN20 (PTFE)

Kvs: 90 l/min
Diaphragm material: PTFE
Working temperature: - 40 + 180°С
ΔP min = 0.9 bar ΔP max = 10 bar

21YC5ZOT190
₴11,276.25
Possible discount
Solenoid valve of indirect action ODE DN25 (PTFE)

Kvs: 160 l/min
Diaphragm material: PTFE
Working temperature: - 40 + 180°С
ΔP min = 0.9 bar ΔP max = 10 bar

21YC6ZOT250
₴12,721.55
Possible discount
Details
Details

Solenoid valve of indirect action ODE DN15-DN25 (PTFE)

Solenoid valves normally open models 21YС4Z… - 21YС6Z… are used to automatically shut off the flow of hot water, steam, and other liquid and gaseous media, depending on the membrane used.

Specifications:

Working environment steam, hot water, hot air, etc.
Type of two-way
Exploitation combined action
Function normally open
Compound thread G 1/2" - G 1/2"
through hole 13 - 25 mm
Kv flow 50 - 160 l/min
Seal material PTFE
Media temperature range -40..+ 180°C
Minimum differential pressure 0.9 bar
Max. allowable inlet pressure 25 bar
Supply voltage ~12, 24, 48, 110, 220, 230 V (50Hz); -12, 24,48V
Work resource 400,000 cycles
