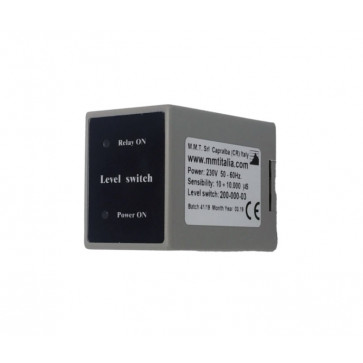

Conductivity level regulator MMT 200-000-04

Conductivity level regulator MMT 200-000-04

These regulators are used to maintain the level of liquid, powder or solid conductive products within preset levels. They can also be used to signal overflow, overempty or dry running alarms.

Electrically connected to one of the 390/395/396/600/700/710 series probes, it is used to maintain the level of conductive liquids between 2 fixed levels; particularly used to read the water level in boilers between 2 fixed levels; when the water level drops below the set level, the pump starts, when the level rises above the set level, the pump stops; or it is used for maximum or minimum level alarms, acting on a pump or a solenoid valve.

A green LED indicates power and a red LED indicates when the level has been reached. They are divided into ranges in order to control products with conductivity ranging from 0.5 µS to 10000 µS.

An internal trimmer called “sensitivity” allows you to adjust the intervention threshold based on the conductivity of the water.
