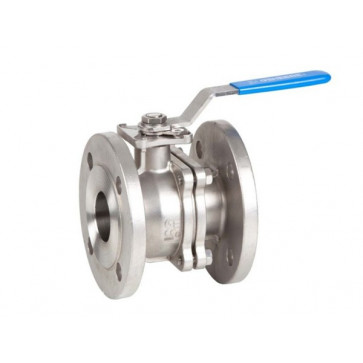

Two-piece flanged ball valve GENEBRE 2528 DN15-DN200

Name: Теплотерм
Telephone: (044) 33-999-40

Be the first to review this product

Short information

Nominal diameter: 15-200
Connection type: flange
Maximum working pressure:
- DN15-DN50: 40 bar
- DN65-DN200: 16 bar
Operating temperature range: - 30... + 180°С

Prices for DN125-DN200 available on request

SKU: 252804sbor

Add to Wishlist

Наименование	Краткая информация	Артикул	Price	Add to Cart
Two-piece flanged ball valve GENEBRE 2528 DN15	Nominal diameter: 15 Mounting length: 115 mm	252804	₴4,340.75	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write info@teploterm.com Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Two-piece flanged ball valve GENEBRE 2528 DN20	Nominal diameter: 20 Mounting length: 120 mm	252805	₴5,126.45	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write info@teploterm.com Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Two-piece flanged ball valve GENEBRE 2528 DN25	Nominal diameter: 25 Mounting length: 125 mm	252806	₴6,348.65	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write info@teploterm.com Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Two-piece flanged ball valve GENEBRE 2528 DN32	Nominal diameter: 32 Mounting length: 130 mm	252807	₴9,772.75	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write info@teploterm.com Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Two-piece flanged ball valve GENEBRE 2528 DN40	Nominal diameter: 40 Mounting length: 140 mm	252808	₴11,009.50	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write info@teploterm.com Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Two-piece flanged ball valve GENEBRE 2528 DN50	Nominal diameter: 50 Mounting length: 150 mm	252809	₴14,419.05	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write info@teploterm.com Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Two-piece flanged ball valve GENEBRE 2528 DN65	Nominal diameter: 65 Mounting length: 170 mm	252810	₴23,449.75	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write info@teploterm.com Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Two-piece flanged ball valve GENEBRE 2528 DN80	Nominal diameter: 80 Mounting length: 180 mm	252811	₴0.00	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write info@teploterm.com Working hours: Mon-Fri from 9 a.m. to 5 p.m. x
Two-piece flanged ball valve GENEBRE 2528 DN100	Nominal diameter: 100 Mounting length: 190 mm	252812	₴0.00	Possible discount To receive a discount, call us tel. (044) 33-999-40, 41 or write info@teploterm.com Working hours: Mon-Fri from 9 a.m. to 5 p.m. x

Details

Details

Ball valve flanged two-piece n / f GENEBRE DN15-DN200

Characteristic

1. Full bore flanged ball valve, two piece.
2. Flange connection according to DIN 2501.
PN - 40 from DN 15 to DN 50.
PN - 16 from DN 65 to DN 200.
3. Made of CF8M stainless steel.
4. Design standard is DIN 3357 / ISO 5752.
5. Face to face distance according to DIN 3202 F4 / F5.
6. Ball seat PTFE + 15% FV (glass fiber reinforced Teflon)
7. From DN 32 spiral metal body seal.
8. O-ring-Viton.
9. Protection against leakage through the stem hole.
10.Direct mounting of the actuator according to ISO 5211 is possible (patented system)
11. Blocking system.
12. Anti-static device.
13.Max. operating pressure 40/16 Kg/cm2
14. Working temperature -30 ºC+ 180 ºC.
