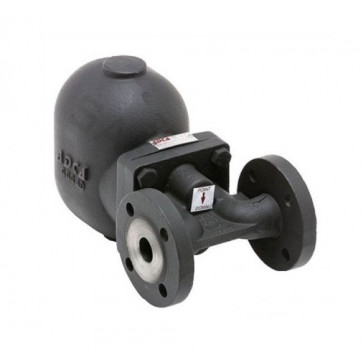

Flanged float steam trap ADCA FLT25 DN25

Flanged float steam trap ADCA FLT25 DN25

Description:

The ADCA FLT25 float steam trap is primarily used to remove condensate from heaters, heat exchangers, dryers, digesters and other continuous cycle equipment. Removes condensate immediately after formation, at steam temperature. Works stably at variable flow and pressure. Contains built-in bimetal air valve. Has a large throughput. A strainer is required upstream of the steam trap. The steam trap can be serviced without dismantling from the steam line. Subject to freezing, thermal insulation required for outdoor installations.

Main characteristics:

• Continuous condensate drain at saturated steam temperature
• Insensitive to sudden and significant changes in pressure and condensate flow
• Efficient air extraction with bimetal air valve

Models:

• FLT25-4.5 (maximum differential pressure 4.5 bar)
• FLT25-10 (maximum differential pressure 10 bar)
• FLT25-14 (maximum differential pressure 14 bar)

Options:

• Working environment: saturated and superheated steam
• Connection: flanged
• Diameter: 25mm
• Maximum medium temperature: +250 ºC
• Maximum working pressure: 16 bar
• Installation: with standard - horizontal entry right - left FLT25 (RL)

1. horizontal installation left - right inlet (LR) (option)
2. vertical installation entry from top - down (V) (optional)
