Check valve wafer n/zh GENEBRE 2406 DN40-DN300
Short information
Nominal diameter: 40-300 mm
Connection type: flanged
Maximum working pressure: 16 bar
Maximum operating temperature: + 180°C
SKU:
240608sbor
| Наименование | Краткая информация | Артикул | Price | Qty | Add to Cart |
|---|---|---|---|---|---|
| Check valve wafer n/zh GENEBRE 2406 DN40 |
Nominal diameter: 40 |
240608 |
₴2,158.25
|
Possible discount
|
|
| Check valve wafer n/zh GENEBRE 2406 DN50 |
Nominal diameter: 50 |
240609 |
₴2,720.85
|
Possible discount
|
|
| Check valve wafer n / f GENEBRE 2406 DN65 |
Nominal diameter: 65 |
240610 |
₴3,278.60
|
Possible discount
|
|
| Check valve wafer n/zh GENEBRE 2406 DN80 |
Nominal diameter: 80 |
240611 |
₴4,253.45
|
Possible discount
|
|
| Check valve wafer n/zh GENEBRE 2406 DN100 |
Nominal diameter: 100 |
240612 |
₴6,023.70
|
Possible discount
|
|
| Check valve wafer n/zh GENEBRE 2406 DN125 |
Nominal diameter: 125 |
240613 |
₴7,566.00
|
Possible discount
|
|
| Check valve wafer n/zh GENEBRE 2406 DN150 |
Nominal diameter: 150 |
240614 |
₴10,112.25
|
Possible discount
|
|
| Check valve wafer n/zh GENEBRE 2406 DN200 |
Nominal diameter: 200 |
240615 |
₴17,460.00
|
Possible discount
|
Details
Details

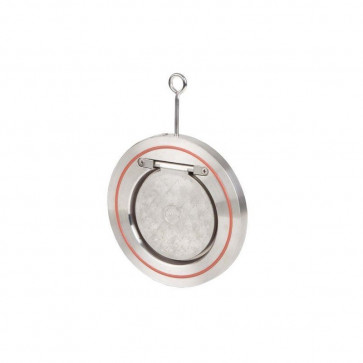

Check valve wafer n / f GENEBRE DN40-DN300
Wafer check valves (clamped between the flanges of the pipeline) are designed to protect the pipeline from the reverse flow of the working medium. Installation on a horizontal or vertical (subject to flow from the bottom up) section of the pipeline.
Characteristic
1.Single wafer check valve.
2. Made of AISI 316 stainless steel.
3 External seals - Viton (FKM).
4. Disc seals - Viton(FKM).
5. Can be installed between DIN PN-25 flanges.
6.Vertical, horizontal and inclined installation is possible.
7.Max working pressure 16Kg / cm 2 .
8. Max. working temperature 180 ºC.
9. Minimum head loss
